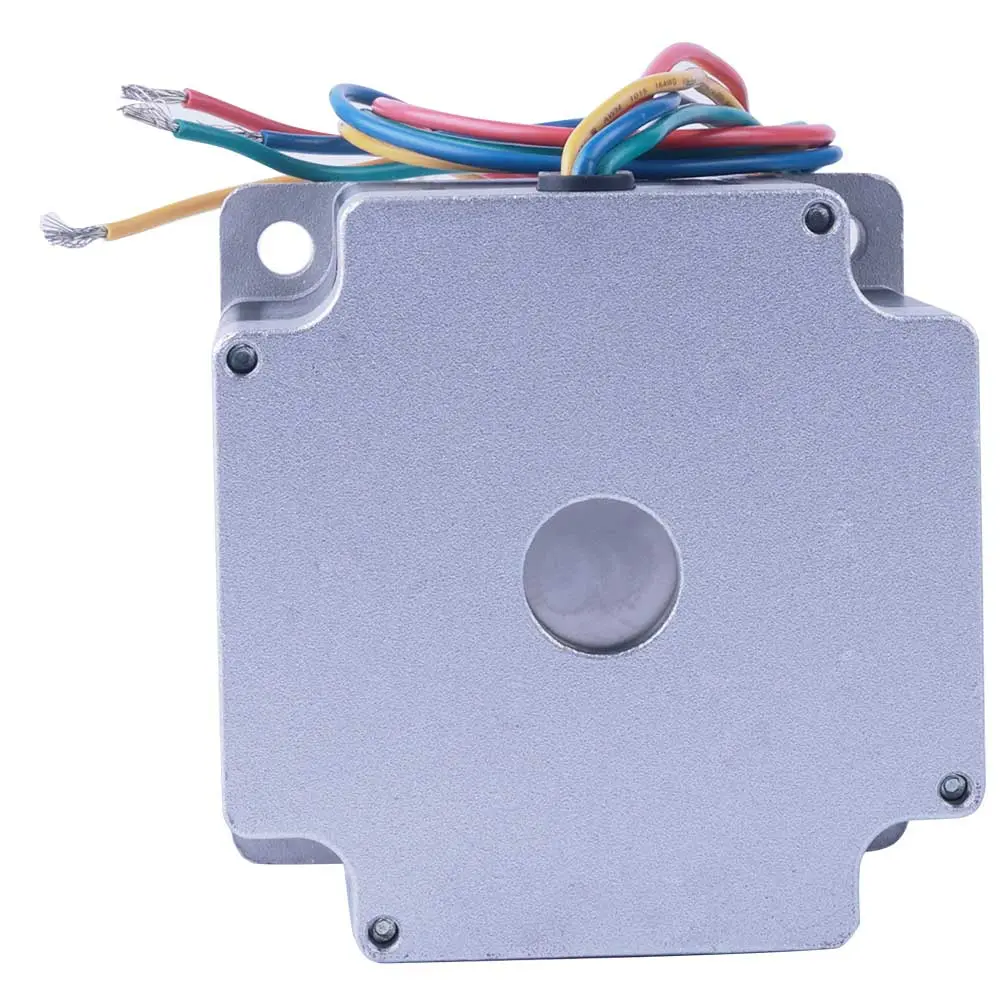

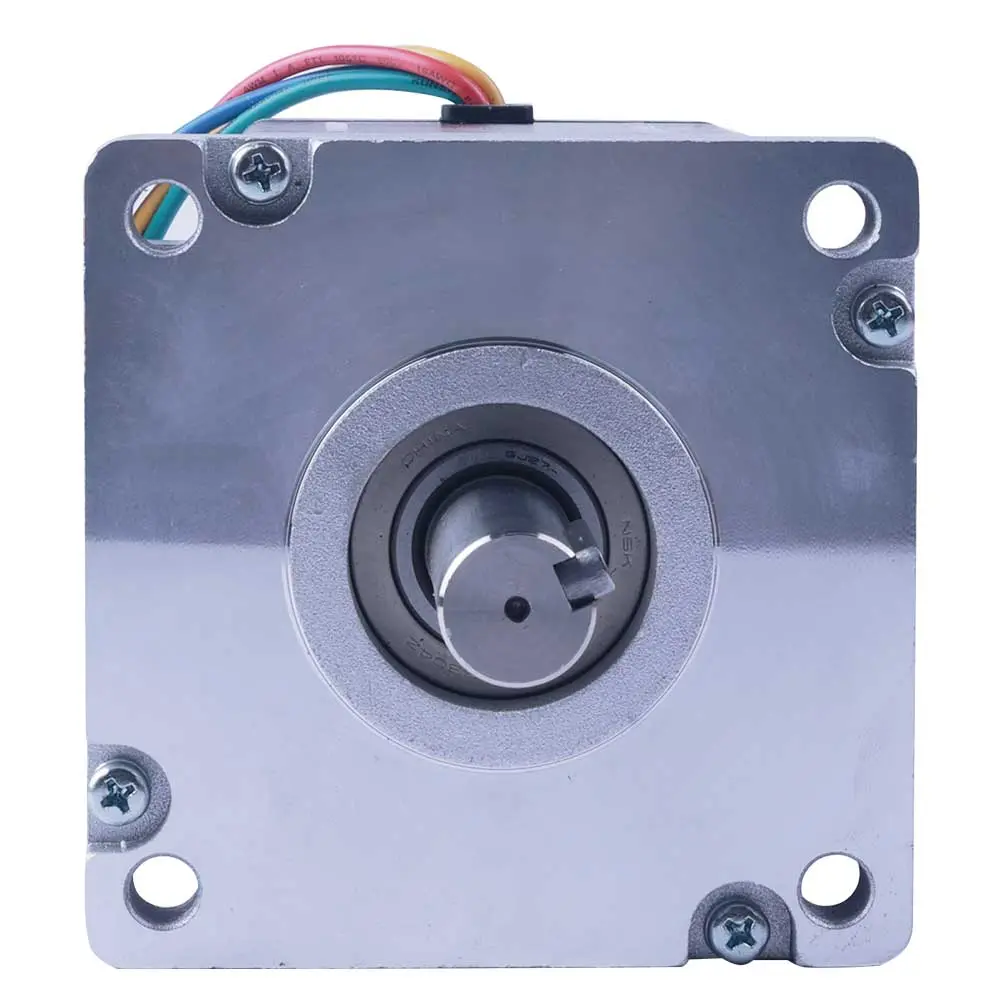

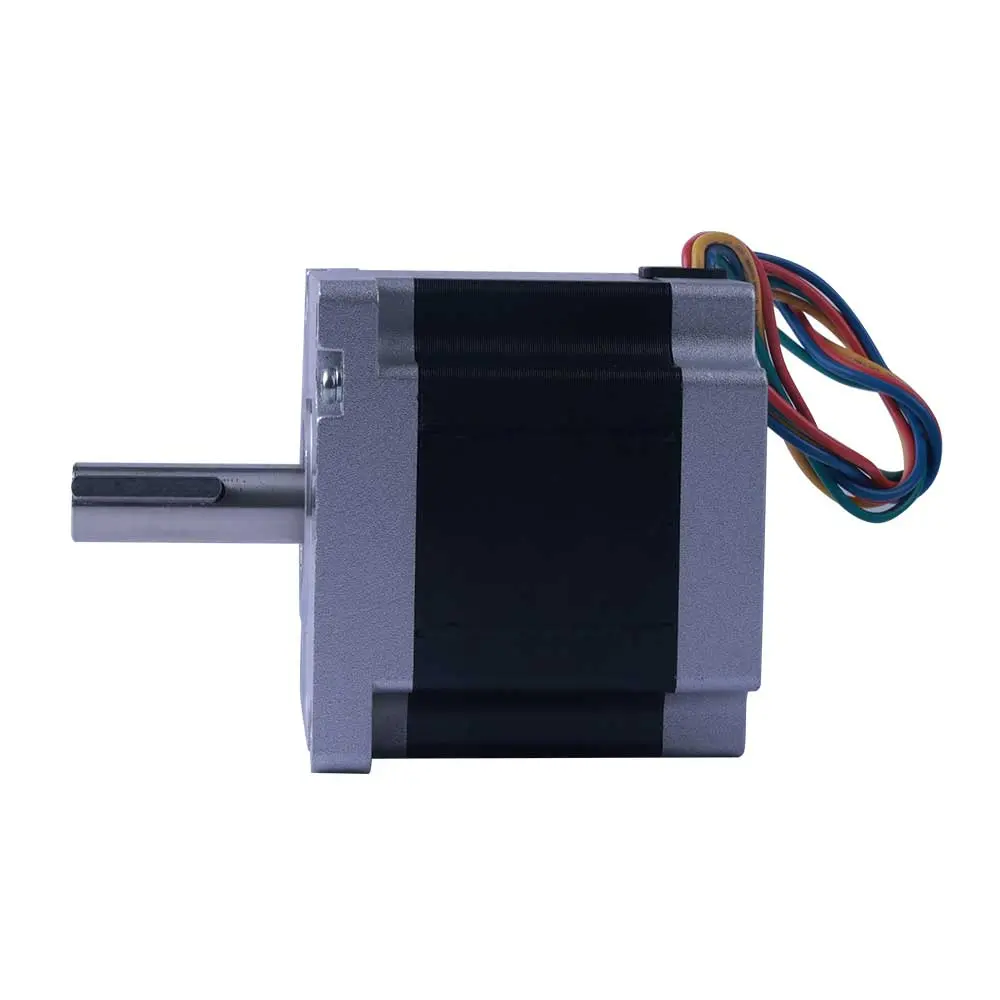

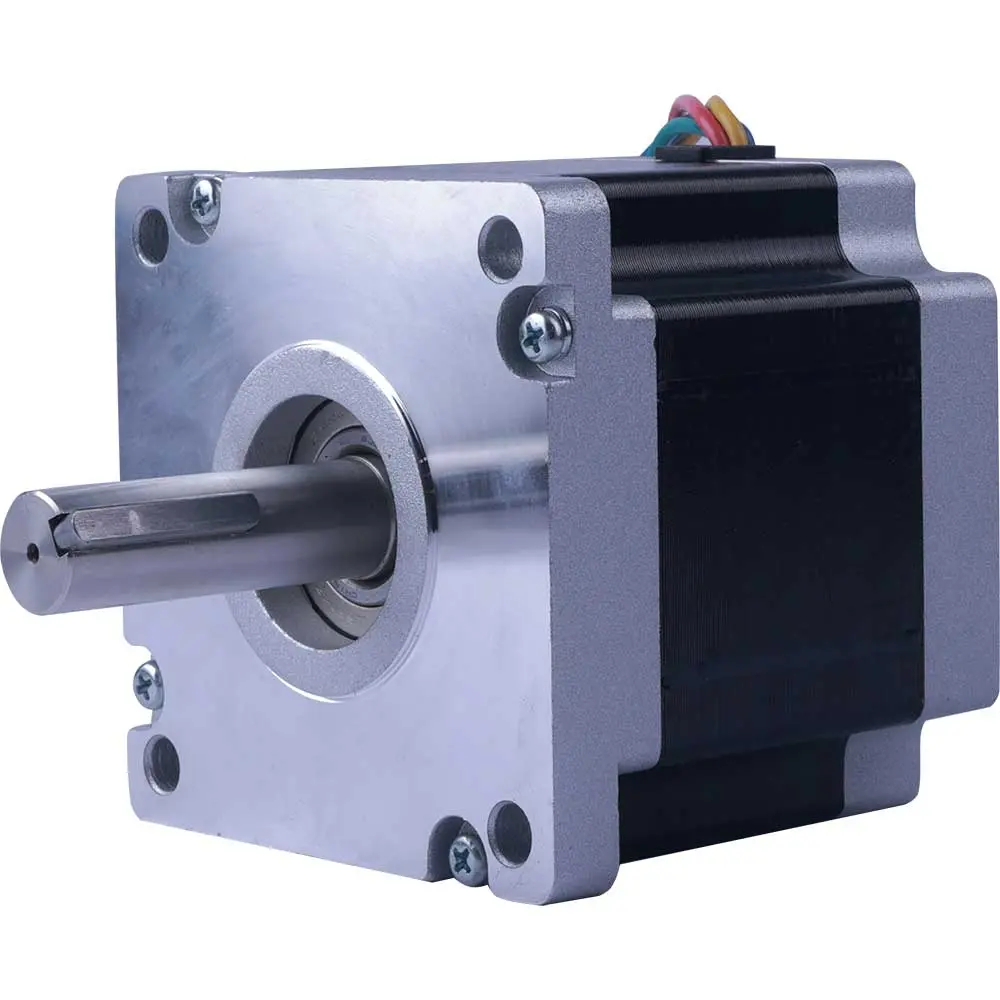

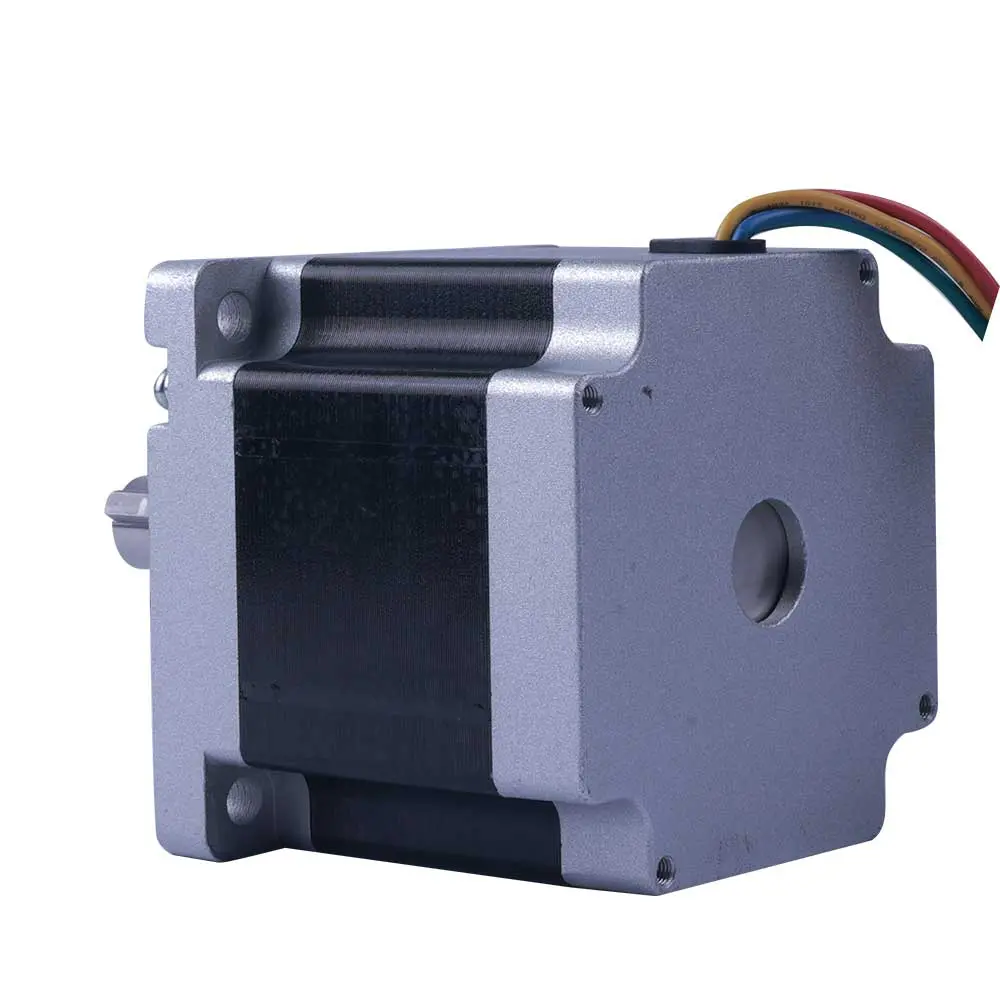

Stepper Motor Nema 42 12.5Nm [110BYGH99-001]
Model | 110BYGH99-001 |
Step Angle ( °) | 1.8 |
Motor Length L(mm) | 100 |
Rated Voltage (V) | 3.0 |
Rated Current (A) | 6.0 |
Phase Resistance (Ω) | 0.5 |
Phase Inductance (mH) | 6 |
Holding Torque (kg.cm) | 125 |
Lead Wires (No) | 4 |
Rotor Inertia (g.c㎡) | 5500 |
Detent Torque (kg.cm) | 0.3 |
Motor Weight (kg) | 0.5 |
